Debugging WASM in Chrome DevTools

The setup and harness

I'll be using an example from my wasm-wat-samples project for this post. In fact, everything is already in place in the gc-print-scheme-pairs sample. This sample shows how to construct Scheme-like s-exprs in WASM using gc references and print them out recursively. The sample supports nested pairs of integers, booleans and symbols.

To see this in action, we have to first compile the WAT file to WASM, for example using watgo:

$ cd gc-print-scheme-pairs
$ watgo parse gc-print-scheme-pairs.wat -o gc-print-scheme-pairs.wasm

The browser-loader.html file in that directory already expects to load gc-print-scheme-pairs.wasm. But we can't just open it directly from the file-system; since it loads WASM, this file needs to be served with a local HTTP server. I personally use static-server for this, but you can use anything else - like Python's built-in http.server:

$ static-server
2026/04/10 08:55:20.244096 Serving directory "." on http://127.0.0.1:8080
...

Now it can be opened in the browser by following the printed link and selecting the browser-loader.html file.

The debugging process

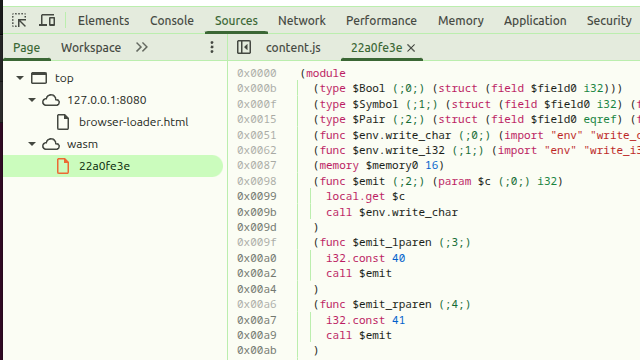

Open the Chrome DevTools, and in Sources, open the Page view on the left. It should have one entry under wasm, which will show the decompiled WAT code for our module. Note: this code is disassembled from the binary WASM, so it will lose some WAT syntactic sugar (like folded instructions):

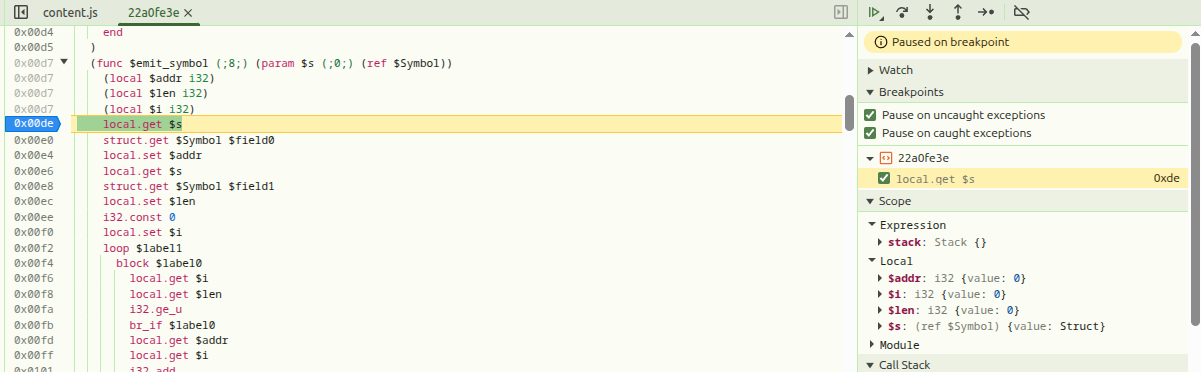

You can set a breakpoint by clicking on the address column to the left of the code, and then refresh the page. The DevTools debugger will run the program again and stop at the breakpoint:

Here you can step over, into, see local values and call stack, etc - a real debugger!

Debugging unexpected exceptions

The most important use case for me while developing the compiler was debugging unexpected exceptions (coming from instructions like ref.cast). Notice the checkboxes saying "Pause on ... exceptions" on the right-hand side of the previous screenshot. With these selected, the DevTools debugger will automatically stop on an exception and show where it is coming from. Let's modify the gc-print-scheme-pairs.wat sample to see this in action. The $emit_value function performs a set of ref.test checks to see which kind of reference it's dealing with before casting; let's add this line at the very start:

(call $emit_bool (ref.cast (ref $Bool) (local.get $v)))

It's clearly wrong to assume that $v is a bool reference without first testing it; this is just for demonstration purposes.

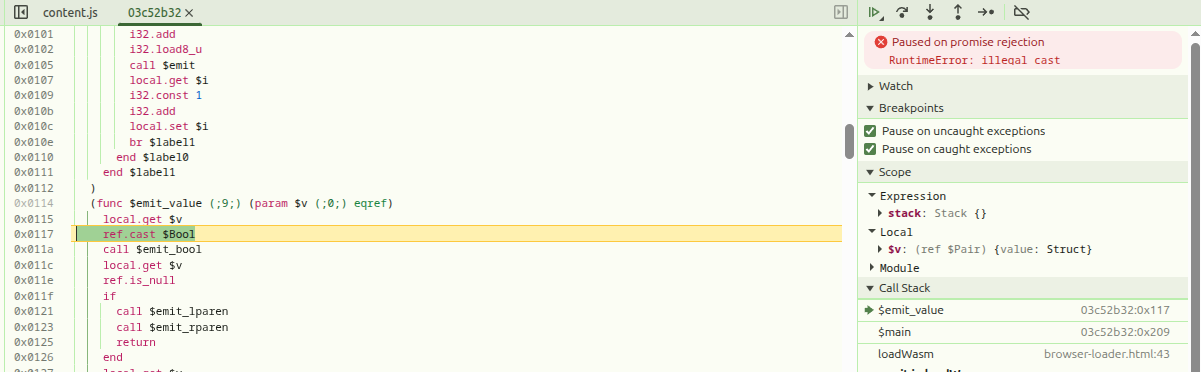

Without setting any breakpoints, recompiling this code with watgo and reloading the page, we get:

The debugger stopped at the instruction causing the exception; moreover, in the Scope pane on the right we can see that the actual type of $v is (ref $Pair), so it's immediately clear what's going on.

I've found this capability extremely valuable when writing (or emitting from a compiler) non-trivial chunks of WASM code using gc types and instructions.

Debugger vs. printfs in wasm

"Should I use a debugger or just printfs" is a common topic of debate among programmers. While I'm usually in the "printf debugging" camp, I'm not dogmatic, and will certainly reach for a debugger when the situation calls for it.

Specifically, when investigating reference exceptions in WASM, two strong factors tilt the decision towards using a debugger:

1. In general, WASM's printf capabilities aren't great. We can import print-like functions from the host (and - in fact - our sample does just that), but they're not very flexible and dealing with strings in WASM is painful in general. This is compounded even more when working with gc types, because these aren't even visible to the host (they're opaque references). If we want to do printf debugging of gc values, we have to build a lot of scaffolding first.

2. Exception debugging - in general - is much easier with a supportive debugger in hand. Our ref.cast exception from the example above could have happened anywhere in the code. Imagine having to debug a very large WASM program (emitted by a compiler) to find the source of a failed ref.cast; the debugger takes you right to the spot!

   In fact, even for C programming, I've always found gdb most useful for pinpointing the source of segmentation faults and similar crashes.
